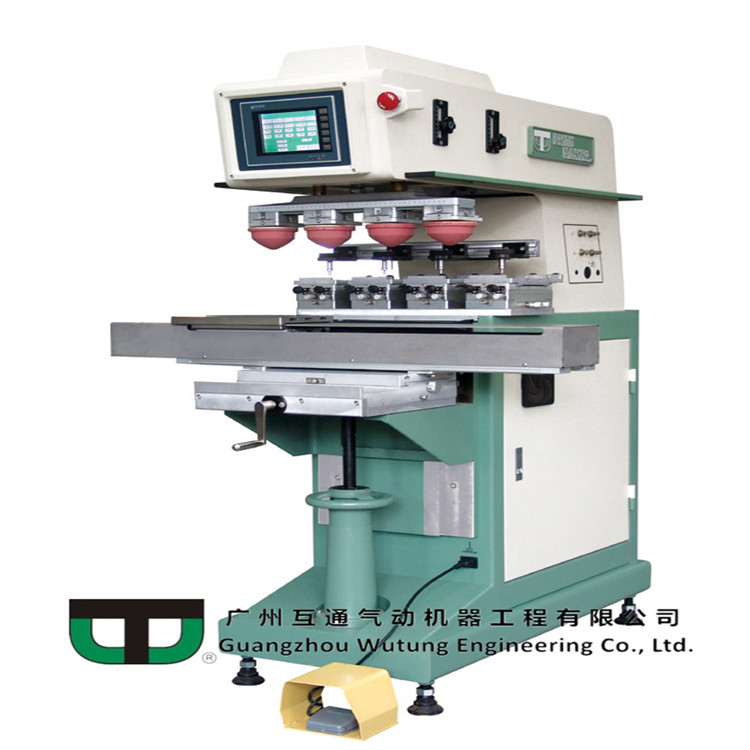

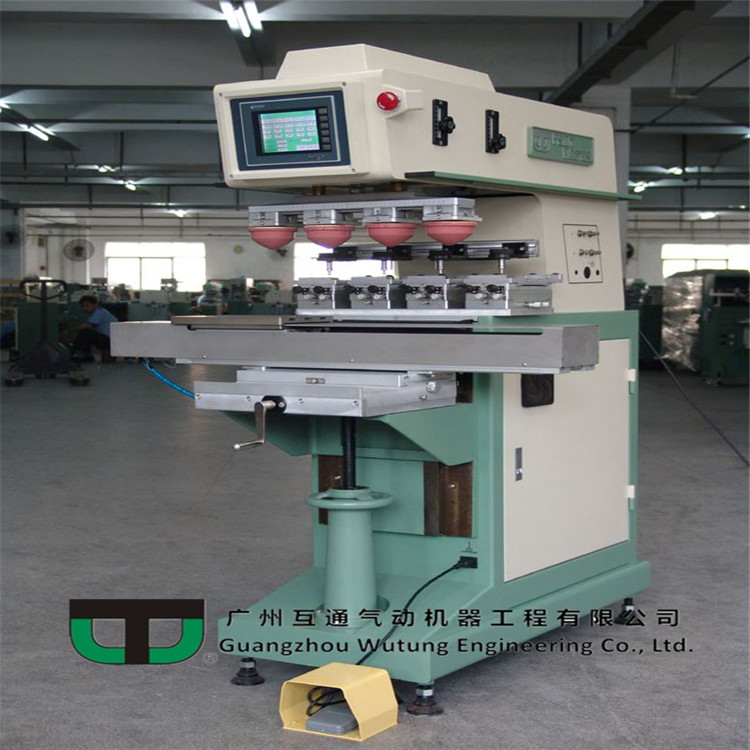

PM- 798/S4/MC/PLC
七系列移印機
PM-798/S4/MC/PLC
-
l 對不同行業生產(如玩具, 家電, 手機等行業)的多元化特色移印機, 有1-6色選擇
l 傳送系統可配直線推拉座或運輸帶
l 配備優良可靠的集成電路控制, 提高印刷精度及品質
l 可配用油盆底座, 方便調較, 或可配用油盅, 節約及環保
|
PM-768/PM-778﹕SPECIFICATIONS / 規格 |
||||||||||||
|
型號 Model |
768 |
768/S2 |
778
|
778/S2 |
778/S3 |
778/C2 |
778/C3 |
|||||
|
可印刷顏色數量Number of Color |
1 |
2 |
1 |
2 |
3 |
2 |
3 |
|||||
|
S 推拉座中心距離(毫米)Pneumatic Shuttle Attachment Centre Stroke (mm) |
- |
125 |
- |
200 |
125 |
- |
- |
|||||
|
C運輸帶類型(位)Pneumatic Conveyor(Station) |
- |
- |
- |
- |
- |
10 |
12 |
|||||
|
最高運行速度 (次數/分鐘) Maximum Running Speed (cycle / min.) |
30 |
20 |
25 |
20 |
10 |
25 |
25 |
|||||
|
耗氣量 (公升/分鐘) Air Consumption (liter / min.) |
14 |
25 |
14 |
25 |
20 |
17 |
20 |
|||||
|
機械體積 (長x寬x高)(厘米) Machine Dimension (L x W x H)cm |
86 x 40 x 140 |
86 x 46 x 140 |
106 x 44 x 152 |
106 x 60 x 152 |
106 x 80 x 152 |
106 x 64 x 152 |
106 x 77 x 152 |
|||||
|
重量(千克) Weight (kg) |
120 |
128 |
182 |
190 |
197 |
222 |
231 |
|||||
|
電力要求Power Requirement |
220 V Single Phase 50 Hz / 60 Hz |
|||||||||||
|
氣壓要求Compressed Air Pressure Requirement |
5-7 bar |
|||||||||||
|
最大印刷面積(毫米)Maximum Printing Area(mm) |
70 x 180 |
70 x 70 |
110 x 160 |
70 x 120 |
70 x120 |
70 x120 |
70 x120 |
|||||
|
鋼板尺寸Plate Size : 3ʺx 4ʺ / 75 x 150mm |
√ |
√ |
|
|
|
|
|
|||||
|
4ʺ x 4ʺ / 100 x 100mm |
√ |
√ |
|
|
|
|
|
|||||
|
3ʺ x ʺ6 / 75 x 150mm |
|
|
√ |
√ |
√ |
√ |
√ |
|||||
|
4ʺ x 6ʺ / 100 x 150mm |
√ |
|
√ |
√ |
√ |
√ |
√ |
|||||
|
4ʺx 8ʺ / 100 x 200mm |
√ |
|
√ |
|
|
|
|
|||||
|
MC油盅機配置標準Map Cup Configuration Standard |
Ø90mm油盅,配合4ʺx 8ʺ鋼板,最大印刷面積Ø75mm |
|||||||||||
|
PM-798﹕SPECIFICATIONS / 規格 |
||||||||||||
|
型號 Model |
798
|
798/S2
|
798/S4
|
798/S4/MC/PLC
|
798/C4
|
798/C6
|
||||||
|
可印刷顏色數量Number of Color |
1 |
2 |
4 |
4 |
4 |
6 |
||||||
|
S 推拉座中心距離(毫米)Pneumatic Shuttle Attachment Centre Stroke (mm) |
- |
200 |
125 |
125 |
- |
- |
||||||
|
C運輸帶類型(位)Pneumatic Conveyor(Station) |
- |
- |
- |
- |
14 |
18 |
||||||
|
最高運行速度 (次數/分鐘) Maximum Running Speed (cycle / min.) |
18 |
10 |
5 |
5 |
18 |
18 |
||||||
|
耗氣量 (公升/分鐘) Air Consumption (liter / min.) |
33 |
37 |
37 |
37 |
37 |
37 |
||||||
|
機械體積 (長x寬x高)(厘米) Machine Dimension (L x W x H)cm |
110 x 56 x 158 |
110 x 60 x 158 |
110 x 87 x 158 |
110 x 87 x 158 |
110 x 103 x 158 |
110 x 128 x 158 |
||||||
|
重量(千克) Weight (kg) |
290 |
308 |
328 |
328 |
373 |
397 |
||||||
|
電力要求Power Requirement |
220 V Single Phase 50 Hz / 60 Hz |
|||||||||||
|
氣壓要求Compressed Air Pressure Requirement |
5-7 bar |
|||||||||||
|
最大印刷面積(毫米)Maximum Printing Area(mm)鋼板尺寸 |
100 x 180 |
70 x 120 |
70 x 120 |
Ø75 |
70 x 120 |
70 x 120 |
||||||
|
Plate Size : 3ʺx6ʺ / 75 x 150mm |
√ |
√ |
√ |
|
√ |
√ |
||||||
|
4ʺx6ʺ/100 x 150mm |
√ |
√ |
√ |
|
√ |
√ |
||||||
|
4ʺx8ʺ/100 x 200mm |
|
|
|
√ |
|
|
||||||
|
6ʺx6ʺ/150x 150mm |
√ |
|
|
|
|
|
||||||
|
6ʺx8ʺ/150 x 200mm |
√ |
|
|
|
|
|
||||||
|
MC油盅機配置標準MapCup Configuration Standards |
Ø90mm油盅,配合4ʺx 8ʺ鋼板使用,最大印刷面積Ø75mm |
|||||||||||
