SKA-5A
SKA-5A

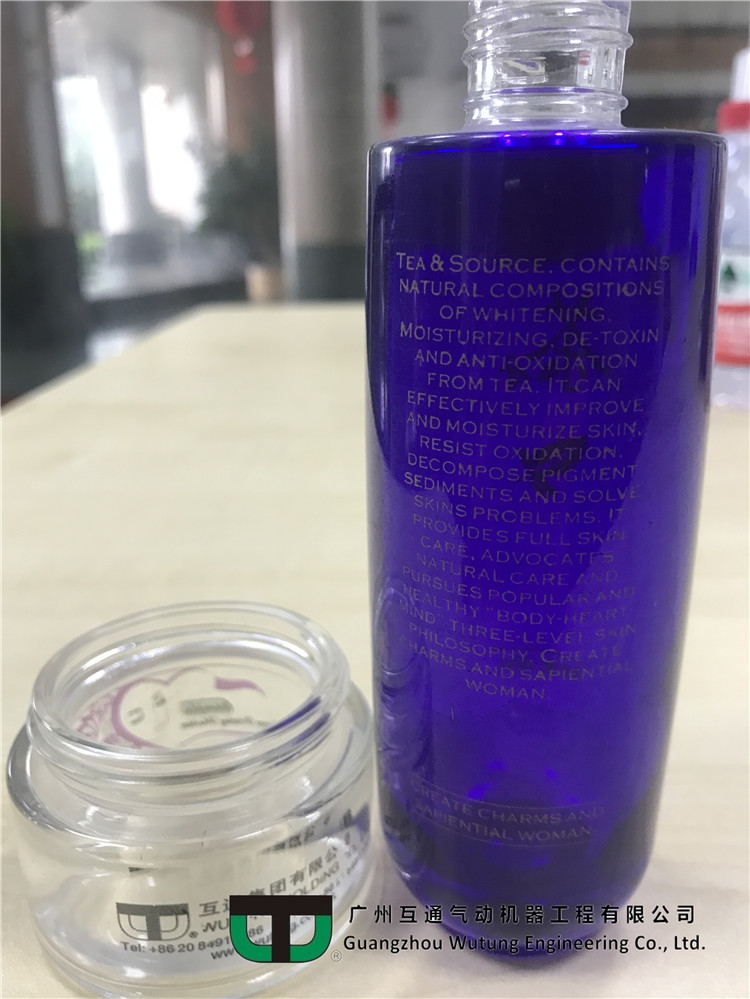

l SKA series is designed to print products in round/flat/conical/rectangular shapes etc.

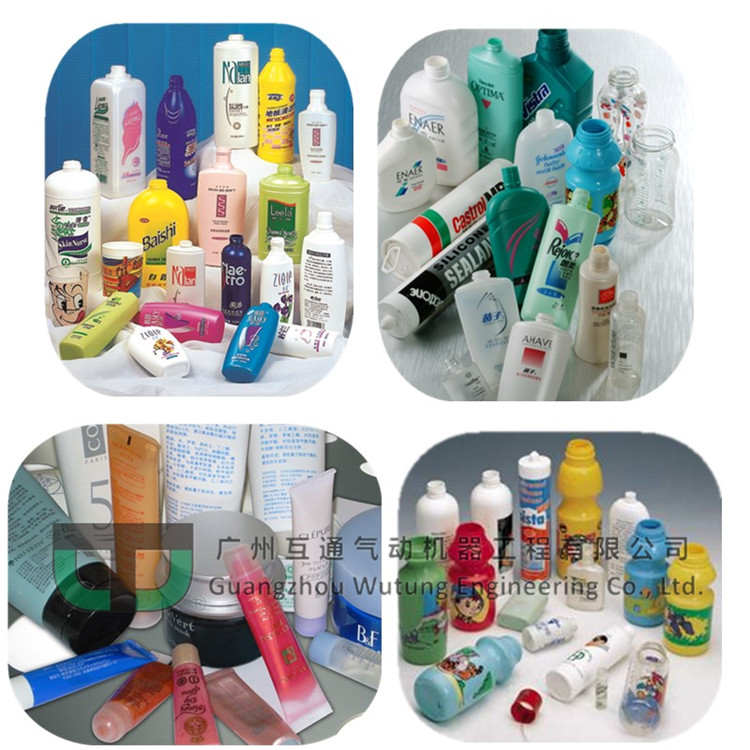

l Mainly used for printing plastic containers in various industries such as cosmetic / industrial/daily care / construction etc.
l Each type of product will have its own special tooling and gear.
l User friendly and simple operations on multi-color printing.
UV curing system
l UV curing system is designed for curing the products after printing with UV ink.
l Three level of output is available, the ink on the product is cured instantly after the product is exposed under the UV lamp.
l Equipped with the exhaust fan and temperture damper.
|
SKA﹕ SPECIFICATIONS |
||||
|
Model |
SKA-2A |
SKA-3A |
SKA-4A |
SKA-5A |
|
Printable forms for each model﹕ Round |
√ |
√ |
√ |
√ |
|
Oval |
√ |
√ |
√ |
|
|
Flat |
|
√ |
|
|
|
Maximum Printing Area (L x W) |
175(Ø55)mm x 177mm |
320(Ø100)mm x 177mm |
670(Ø200)mm x 177mm |
950(Ø300)mm x 177mm |
|
Maximum Running Speed |
33 cycle / min |
20 cycle / min |
16 cycle / min |
13 cycle / min |
|
Power Requirement |
220V Single Phase (單相) 50Hz/60Hz |
|||
|
Compressed Air Pressure Requirement |
4-6 bar |
|||
|
Machine Dimension (L x W x H)
|
(730x750x1270) mm |
(830x870x1295)mm |
(1130x875x1350) mm |
(1650x1320x1400) mm |
|
Weight |
102kg |
144kg |
169kg |
277kg |
|
(Flat / Round) UV Curing Machine SPECIFICATIONS
|
|||
|
|
UV-300RF |
UV -300F |
|
|
Characteristic |
Round and flat objects curing with using fixtures |
Flat surface curing |
|
|
Product Dimension |
Ø12mm-Ø24mm H: 12-250mm |
Max. Width : 300mm Max. Height: 140mm |
|
|
UV Lamp |
12” (300W/inch) |
||
|
Flame Treatment Machine SPECIFICATIONS SKD-2A |
|||
|
Product Dimension |
Ø12mm-Ø24mm |
25mm-250mm |
|
|
Effective Treatment Length |
< 250mm |
||
