SKA-3A
SKA-3A
-

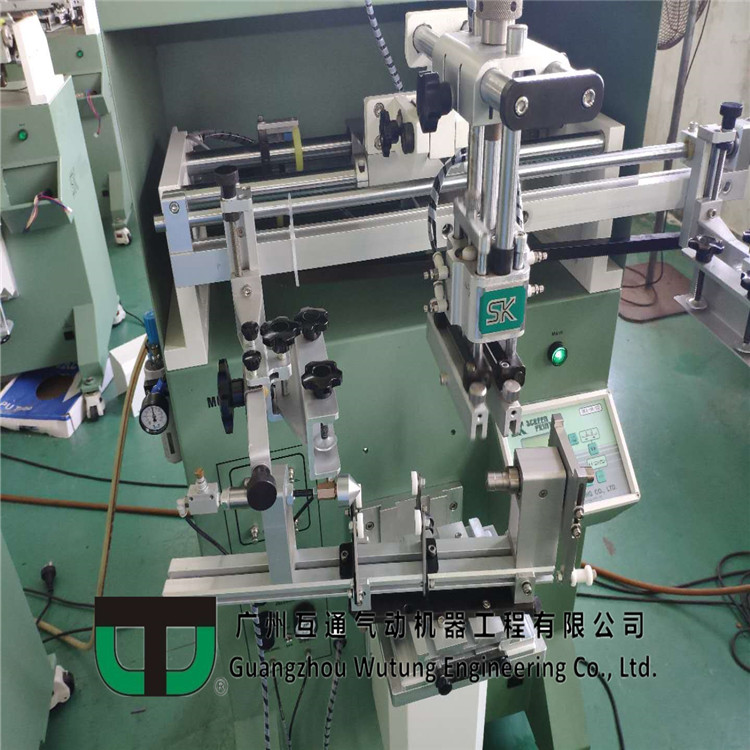

l SKA series is designed to print products in round/flat/conical/rectangular shapes etc.

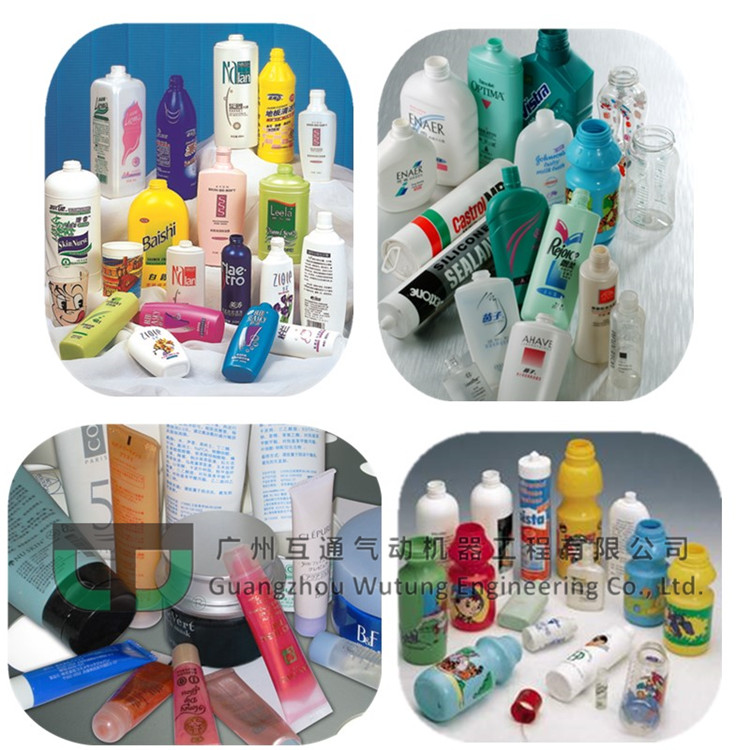

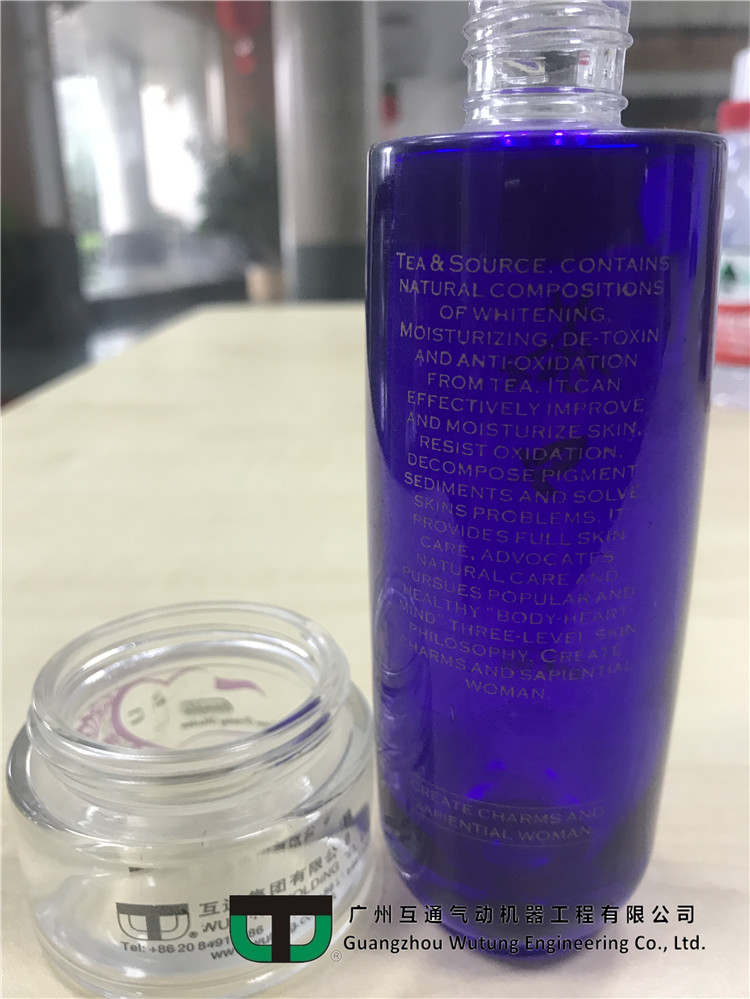

l Mainly used for printing plastic containers in various industries such as cosmetic / industrial/daily care / construction etc.
l Each type of product will have its own special tooling and gear.
l User friendly and simple operations on multi-color printing.
l UV curing system is designed for curing the products after printing with UV ink.
l Three level of output is available, the ink on the product is cured instantly after the product is exposed under the UV lamp.
l Equipped with the exhaust fan and temperture damper.
SKA﹕ SPECIFICATIONS
Model
SKA-2A
SKA-3A
SKA-4A
SKA-5A
Printable forms for each model﹕ Round
√
√
√
√
Oval
√
√
√
Flat
√
Maximum Printing Area (L x W)
175(Ø55)mm x 177mm
320(Ø100)mm x 177mm
670(Ø200)mm x 177mm
950(Ø300)mm x 177mm
Maximum Running Speed
33 cycle / min
20 cycle / min
16 cycle / min
13 cycle / min
Power Requirement
220V Single Phase (單相) 50Hz/60Hz
Compressed Air Pressure Requirement
4-6 bar
Machine
Dimension (L x W x H)
(730x750x1270) mm
(830x870x1295)mm
(1130x875x1350) mm
(1650x1320x1400) mm
Weight
102kg
144kg
169kg
277kg
(Flat / Round) UV Curing Machine SPECIFICATIONS
UV-300RF
UV -300F
Characteristic
Round and flat objects curing with using fixtures
Flat surface curing
Product Dimension
Ø12mm-Ø24mm
H: 12-250mm
Max. Width : 300mm
Max. Height: 140mm
UV Lamp
12” (300W/inch)
Flame Treatment Machine SPECIFICATIONS
SKD-2A
Product Dimension
Ø12mm-Ø24mm
25mm-250mm
Effective Treatment Length
< 250mm
