RUV- 180SV
180SV光标对位

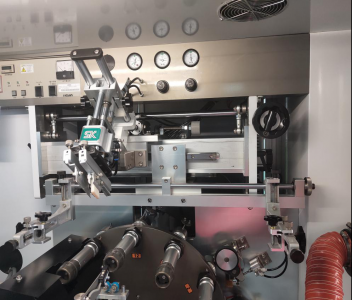

180SV印刷头
MULTI FUNCTIONAL SCREEN PRINTING SYSTEM - SCREEN WHEEL SERIES

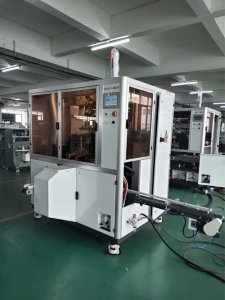

RUV-180SV
Design for printing single color on special containers such as soft tubes, closures and other round containers.
Depends on product dimension, the maximum speed can be up to 4800 pcs/hr.
High speed servo motor drives screen printing unit, equipped with reliable UV system,
RUV-180SV is ideal for precise screen printing on round containers.

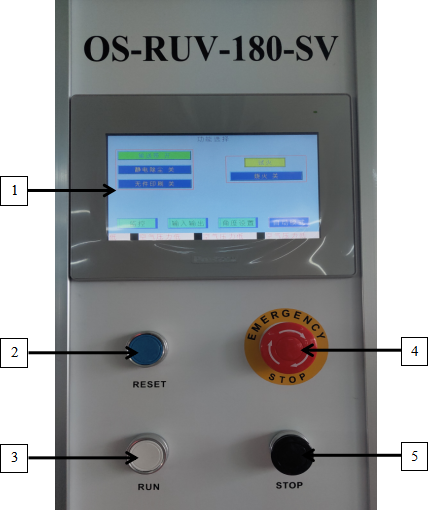

Touch monitor controlled, instant change printing diameter with ease.
RUV-180SV
Design for printing single color on special containers such as soft tubes, closures and other round containers.
Depends on product dimension, the maximum speed can be up to 4800 pcs/hr.
High speed servo motor drives screen printing unit, equipped with reliable UV system,
RUV-180SV is ideal for precise screen printing on round containers.
Touch monitor controlled, instant change printing diameter with ease.
| RUV-180SV SPECIFICATONS | |
| Printing Product Size (Dia. x Length) | (Ø8mm-Ø80mm) x(20mm-230mm) |
| Maximum Printing Area | 252mm x 170mm (Ø80mm x 170mm) |
| Maximum Running Speed | 80 pcs/min |
| UV Lamp Power | 2.4kW each |
| Power Requirement | 380V 3phase 50Hz |
| Compressed Air Pressure Requirement | 5-7 bar |
| Power Consumption | 8kW |
| Air Consumption | 110L/min |
| Machine Dimension(L x W x H) | 3250mm x 1600mm x 2100mm |
| Weight | 1200kg |
