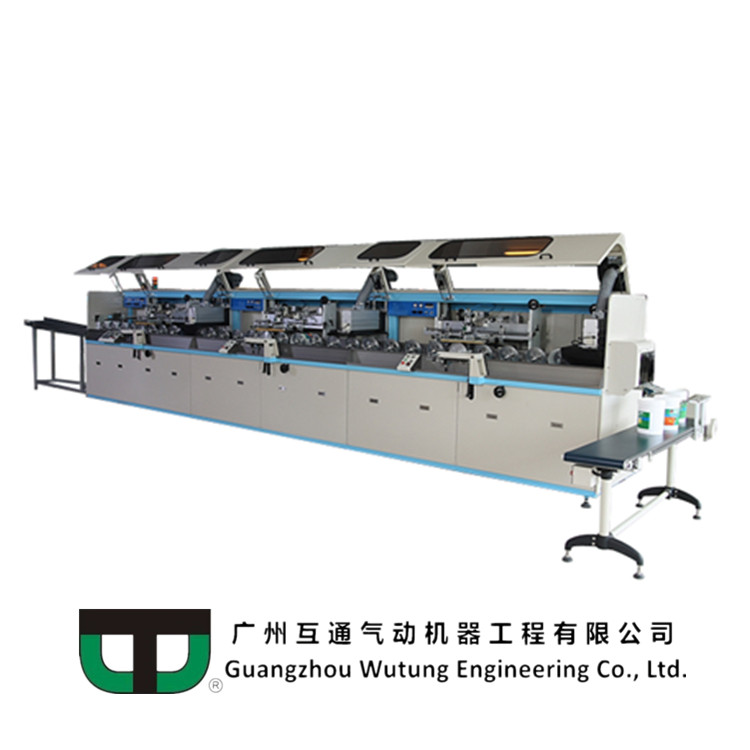

CA-103
CA-103
Designed for high volume single to multi-color screen printing, it can print round, oval and rectangular container or other special products.
Widely used on cosmetic product, food product, beverages, stationery, detergent, baby care products and more.
Screen Train is equipped with semi-auto loading system and tailor-made automatic feeding system.
Screen Train provides “One-Stop”solution from one to six colors screen printing. Its synchronized mechanical design provides stable transmissions, PLC control system for simple operation, makes its registration more accurate and its production more efficient.
According to different requirements, labeling unit, inspection system or hot stamping unit can be installed.
|
CA-102﹕ SPECIFICATIONS |
||
|
|
Round |
Oval |
|
Printing Product Size (Dia. x Length ) |
(Φ25-130mm) x (60mm-300mm) |
(Φ40-120mm) x (60mm-300mm) |
|
Maximum Printing Area |
240mm x 177mm |
120mm x 200mm |
|
Maximum Running Speed |
66pcs/min |
75pcs/min |
|
UV Lamp Power |
2.4kW(6”)/3.2kW(8”)/4kW(10”) |
|
|
Power Requirement |
380V 3phase, 50Hz |
|
|
Compressed Air Pressure Requirement |
5-7 bar |
|
|
Power Consumption |
5.4kW/6.2kW/7kW each unit |
|
|
Air Consumption main unit |
180L/min |
|
|
Air Consumption modular station |
30L/min |
|
|
Main machine Dimension (L x W x H ) |
3650mm x 2700mm x 2000mm |
|
|
Modular Station Dimension (L x W x H ) |
1900mm x 1200mm x 1865mm |
|
|
Weight |
3300kg |
|
|
CA-1028﹕ SPECIFICATIONS |
||
|
Round Oval |
||
|
Printing Product Size (Dia. x Length ) |
(Φ25-130mm) x (60mm-300mm) |
(Φ40-120mm)x (60mm-300mm) |
|
Maximum Printing Area |
240mm x 177mm |
120mm x 200mm |
|
Maximum Running Speed |
66pcs/min |
75pcs/min |
|
UV Lamp Power |
4kW |
|
|
Power Requirement |
380V 3phase, 50Hz |
|
|
Compressed Air Pressure Requirement |
5-7 bar |
|
|
Power Consumption |
10kW |
|
|
Air Consumption |
90L/min |
|
|
Machine Dimension (L x W x H ) |
2700mm x 2700mm x 2000mm |
|
|
Weight |
1300kg |
|
|
CA-103: SPECIFICATIONS |
|
|
Printing Product Size (Dia.x Length) |
Φ300mm x 375mm |
|
Maximum Printing Area |
950mm x 250mm |
|
Maximum Running Speed |
15pcs/min |
|
UV Lamp Power |
4kw each |
|
Power Requirement |
380V 3phase, 50Hz |
|
Compressed Air Pressure Requirement |
5-7 bar |
|
Power consumption |
28kw |
|
Air Consumption main unit |
160L/min |
|
Air Consumption modular station |
30L/min |
|
Machine Dimension (L x W x H) |
18000mm x 3000mm x 1680mm |
|
Weight |
7500kg |
