PM-768

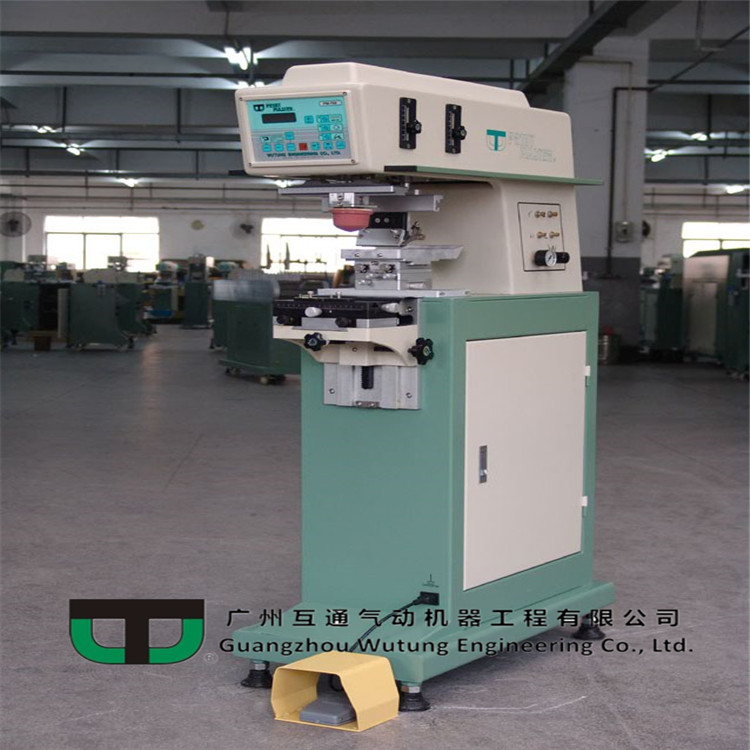

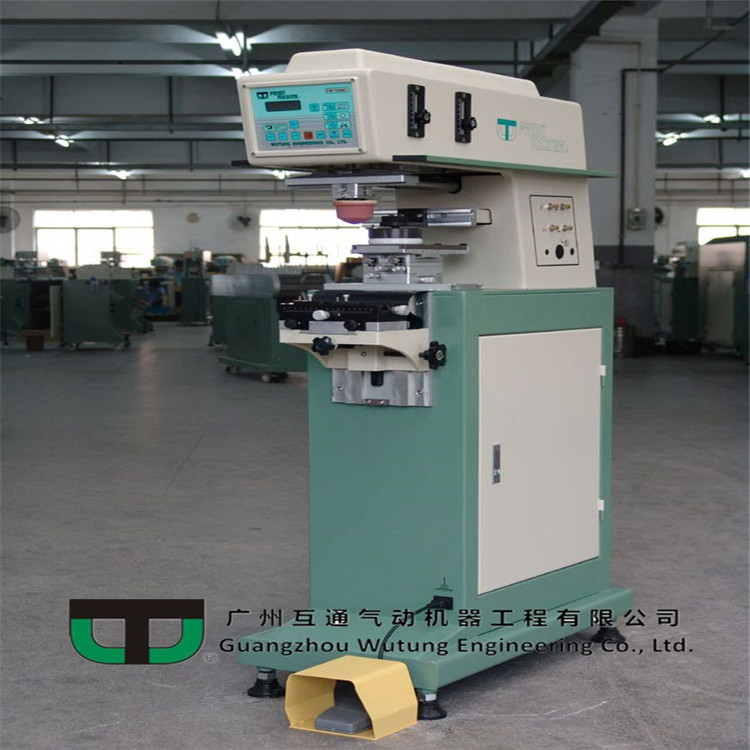

PM-7 SERIES PM-768
l Various models are available for different industries such as toys, home appliance or mobile industries.
l Machines can be matched with shuttle or conveyor.
l Equipped with reliable IC system, to enhance the printing quality.
l Inkwell is the standard for the machines and MapCup is designed for the environmental purpose, in order to reduce waste of ink.
|
PM-768/PM-778﹕SPECIFICATIONS |
||||||||||||
|
Model |
768 |
768/S2 |
778
|
778/S2 |
778/S3 |
778/C2 |
778/C3 |
|||||
|
Number of Color |
1 |
2 |
1 |
2 |
3 |
2 |
3 |
|||||
|
Pneumatic Shuttle Attachment Centre Stroke (mm) |
- |
125 |
- |
200 |
125 |
- |
- |
|||||
|
Pneumatic Conveyor(Station) |
- |
- |
- |
- |
- |
10 |
12 |
|||||
|
Maximum Running Speed (cycle / min.) |
30 |
20 |
25 |
20 |
10 |
25 |
25 |
|||||
|
Air Consumption (liter / min.) |
14 |
25 |
14 |
25 |
20 |
17 |
20 |
|||||
|
Machine Dimension (L x W x H)cm |
86 x 40 x 140 |
86 x 46 x 140 |
106 x 44 x 152 |
106 x 60 x 152 |
106 x 80 x 152 |
106 x 64 x 152 |
106 x 77 x 152 |
|||||
|
Weight (kg) |
120 |
128 |
182 |
190 |
197 |
222 |
231 |
|||||
|
Power Requirement |
220 V Single Phase 50 Hz / 60 Hz |
|||||||||||
|
Compressed Air Pressure Requirement |
5-7 bar |
|||||||||||
|
Maximum Printing Area(mm) |
70 x 180 |
70 x 70 |
110 x 160 |
70 x 120 |
70 x120 |
70 x120 |
70 x120 |
|||||
|
Plate Size : 3ʺx 4ʺ / 75 x 150mm |
√ |
√ |
|
|
|
|
|
|||||
|
4ʺ x 4ʺ / 100 x 100mm |
√ |
√ |
|
|
|
|
|
|||||
|
3ʺ x ʺ6 / 75 x 150mm |
|
|
√ |
√ |
√ |
√ |
√ |
|||||
|
4ʺ x 6ʺ / 100 x 150mm |
√ |
|
√ |
√ |
√ |
√ |
√ |
|||||
|
4ʺx 8ʺ / 100 x 200mm |
√ |
|
√ |
|
|
|
|
|||||
|
Map Cup Configuration Standard |
Ø90mmMap Cup, with 4ʺx 8ʺsteel plate,Max. printing area Ø75mm |
|||||||||||
|
PM-798﹕SPECIFICATIONS |
|
|||||||||||
|
Model |
798
|
798/S2
|
798/S4
|
798/S4/MC/PLC
|
798/C4
|
798/C6
|
||||||
|
Number of Color |
1 |
2 |
4 |
4 |
4 |
6 |
||||||
|
Pneumatic Shuttle Attachment Centre Stroke (mm) |
- |
200 |
125 |
125 |
- |
- |
||||||
|
Pneumatic Conveyor(Station) |
- |
- |
- |
- |
14 |
18 |
||||||
|
Maximum Running Speed (cycle / min.) |
18 |
10 |
5 |
5 |
18 |
18 |
||||||
|
Air Consumption (liter / min.) |
33 |
37 |
37 |
37 |
37 |
37 |
||||||
|
Machine Dimension (L x W x H)cm |
110 x 56 x 158 |
110 x 60 x 158 |
110 x 87 x 158 |
110 x 87 x 158 |
110 x 103 x 158 |
110 x 128 x 158 |
||||||
|
Weight (kg) |
290 |
308 |
328 |
328 |
373 |
397 |
||||||
|
Power Requirement |
220 V Single Phase 50 Hz / 60 Hz |
|
||||||||||
|
Compressed Air Pressure Requirement |
5-7 bar |
|
||||||||||
|
Maximum Printing Area(mm) |
100 x 180 |
70 x 120 |
70 x 120 |
Ø75 |
70 x 120 |
70 x 120 |
|
|||||
|
Plate Size : 3ʺx6ʺ / 75 x 150mm |
√ |
√ |
√ |
|
√ |
√ |
|
|||||
|
4ʺx6ʺ/100 x 150mm |
√ |
√ |
√ |
|
√ |
√ |
|
|||||
|
4ʺx8ʺ/100 x 200mm |
|
|
|
√ |
|
|
|
|||||
|
6ʺx6ʺ/150x 150mm |
√ |
|
|
|
|
|
|
|||||
|
6ʺx8ʺ/150 x 200mm |
√ |
|
|
|
|
|
|
|||||
|
MC MapCup Configuration Standards |
Ø90mmMap Cup, with 4ʺx 8ʺsteel plate,Max. printing area Ø75mm |
|
||||||||||
