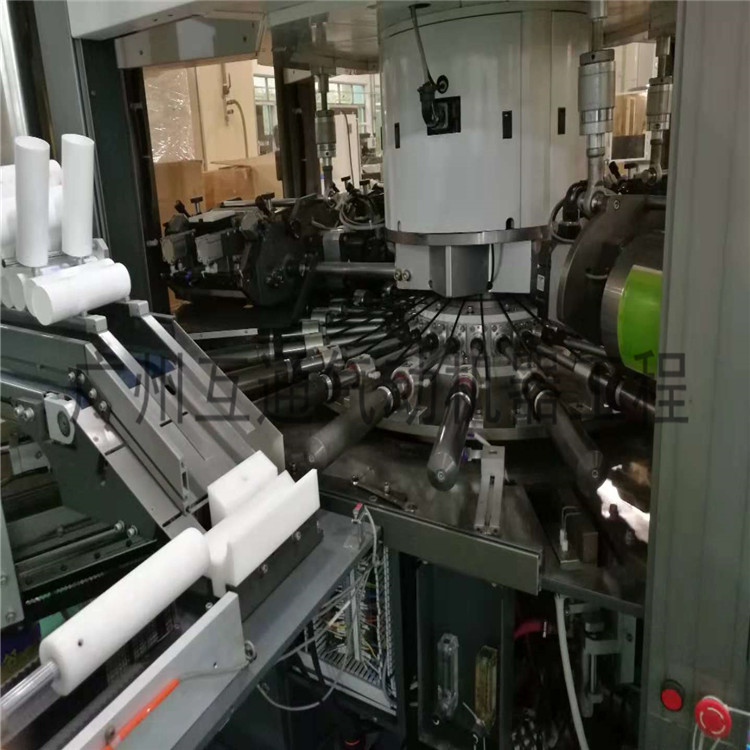

inside

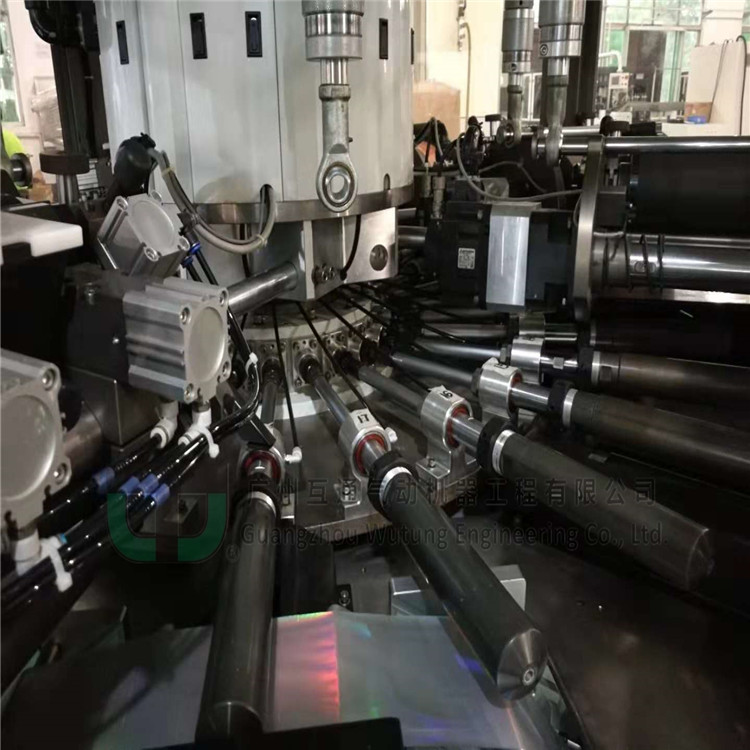

mandrel

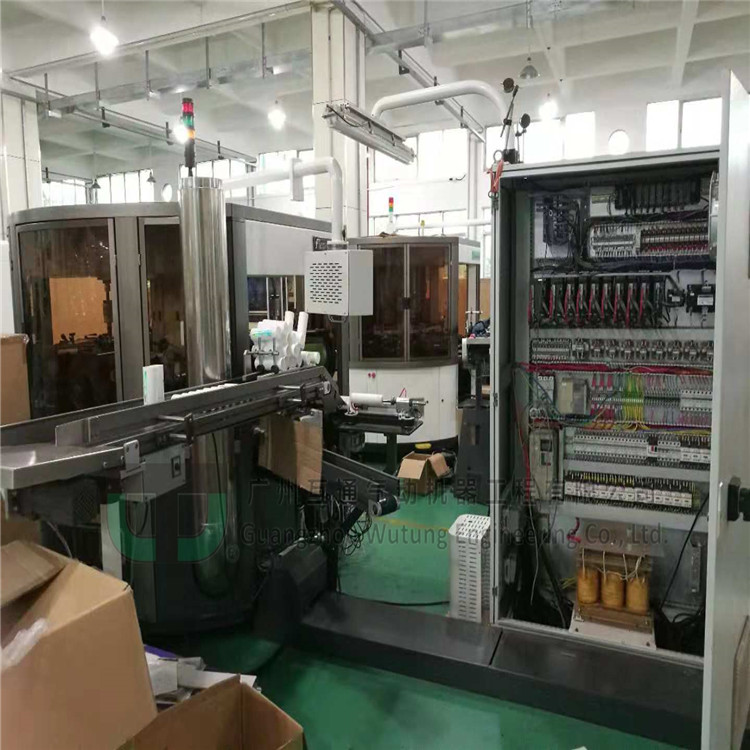

machine and electric carbinet
FLEXOGRAPHIC TUBE PRINTING MACHINE - FLEXO WHEEL
RUV-650
Function Overview﹕
Flexo Wheel use curing after printing design,each print head are followed with a UV curing system to ensure the prints are cured before next printing,resulting to achieve color on color printing with accurate registration. Flexo Wheel uses cam transporting design and combine with servo motor system to complete as high capacity printing production line.
Flexo Wheel is a Fully Automatic Multi-Color Flexo Printing machine,specially designed for printing soft tubes with Flexographic technology,capable of printing one to six colors with max speed 5400pcs per hour.
Standard features includes six units of flexo print head, six set of UV curing systems,PLC with color touch screen interface,automaitic feeding and unloading system,flame treatment,speed synchronous transmission system, vacuum suction system,「No-Tube-No Print」 System etc.
Automatic feeder and unscrambler can be designed according to customer needs.
RUV-650
Function Overview﹕
Flexo Wheel use curing after printing design,each print head are followed with a UV curing system to ensure the prints are cured before next printing,resulting to achieve color on color printing with accurate registration. Flexo Wheel uses cam transporting design and combine with servo motor system to complete as high capacity printing production line.
Flexo Wheel is a Fully Automatic Multi-Color Flexo Printing machine,specially designed for printing soft tubes with Flexographic technology,capable of printing one to six colors with max speed 5400pcs per hour.
Standard features includes six units of flexo print head, six set of UV curing systems,PLC with color touch screen interface,automaitic feeding and unloading system,flame treatment,speed synchronous transmission system, vacuum suction system,「No-Tube-No Print」 System etc.
Automatic feeder and unscrambler can be designed according to customer needs.
| RUV-650﹕SPECIFICATIONS | |
|---|---|
| Printing Product Size (Dia. x Length) | (Ø13mm- Ø60mm) x (20mm-230mm) |
| Maximum Printing Area | 190mm x 170mm |
| Maximum Running Speed | 80 pcs/min |
| UV Lamp Power | 2.4kW each x 6 |
| Power Requirement | 380V 3phase 50Hz |
| Compressed Air Pressure Requirement | 5-7 bar |
| Power Consumption | 27kW |
| Machine Dimension (L x W x H) | 4300mm x 3300mm x 2428mm |
| Air Consumption | 250L/min |
| Weight | 3000kg |
