WT-216

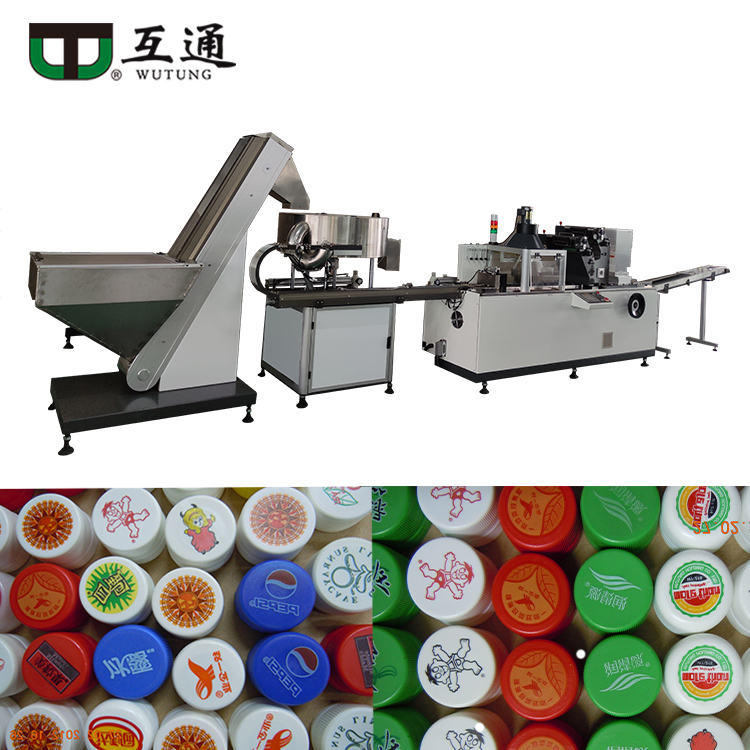

Automatic closure printing machine
WT-216

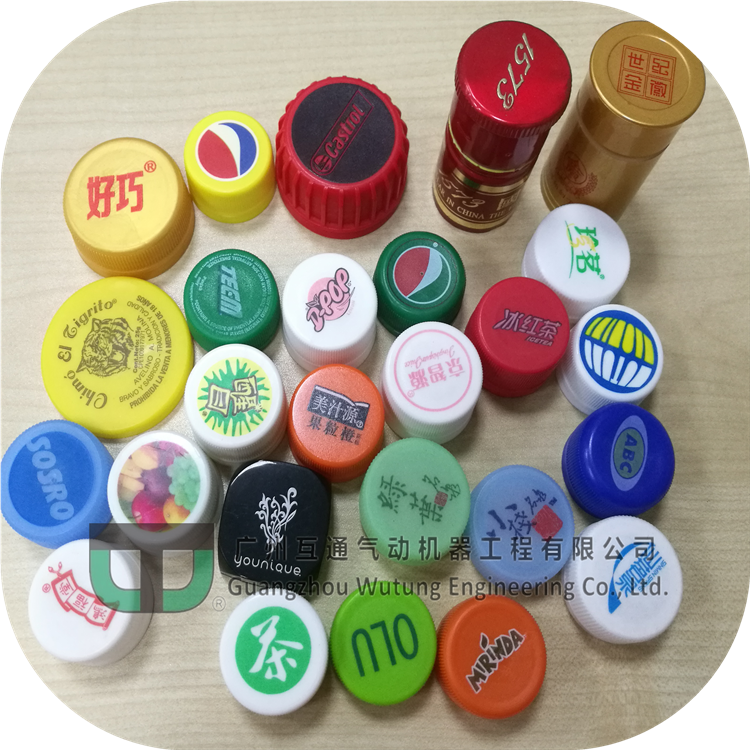

It is specially designed for customers who need bottle cap printing with high-speed, easy plate making, lower cost and simple operation.
Machine design is based on the principle of dry offset printing, equipped with unique magnetic rollers, two sets of dual-color offset printing units
and one set of vanishing unit, it can achieve image on image printing with accurate registration.

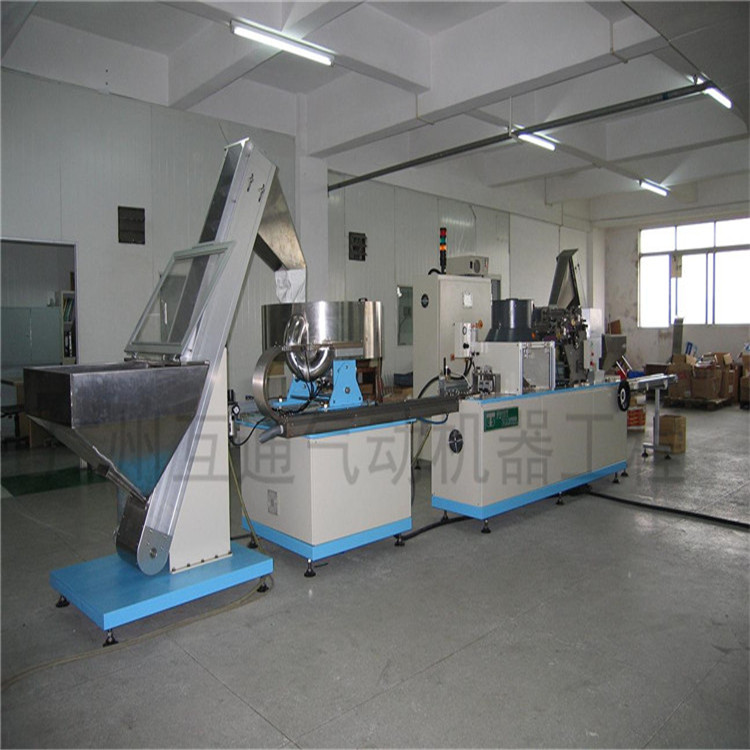

Control by PLC with touch screen interface, it organizes a high efficiency production line.

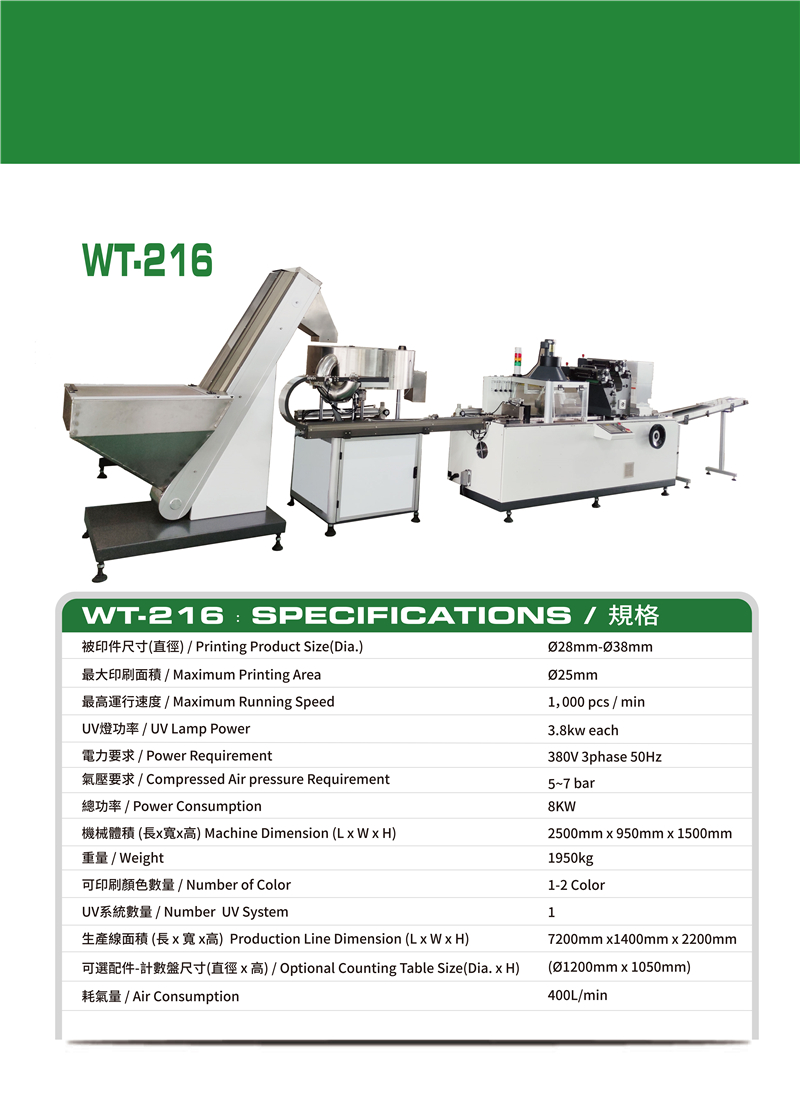

| WT-216﹕SPECIFICATIONS | |
|---|---|
| Printing Product Size(Dia.x Length) | Ø28mm-Ø38mm |
| Maximum Printing Area | Ø34mm |
| Maximum Running Speed | 1,000 pcs/min |
| UV Lamp Power | 3kW each |
| Power Requirement |
380V 3phase 50Hz |
| Compressed Air pressure Requirement | 5~7 bar |
| Power Consumption | 8kW |
| Machine Dimension (L x W x H) | 2500mm x 950mm x 1500mm |
| Weight | 1950kg |
| Number of Color | 1-2 Color |
| Number UV System | 1 |
| Production Line Dimension (L x W x H) | 7200mm x1400mm x 2200mm |
| Optional Counting Table Size(Dia. x H) |
(Ø1200mm x 1050mm) |
| Air Consumption | 400L/min |
